How To Easily Create “In-Device” Screenshots

Here’s an easy way to get a screenshot of a website so it looks like it’s in a mobile device.

Perfect for creating your portfolio images, or updating your old images to use more modern device frames.

Note: all images are linked to larger versions so you can more easily see details.

Download Chrome for Desktop or update Chrome

You may already have the Chrome browser installed. If not, download Chrome for free.

On a Mac you can check Chrome > About Google Chrome to make sure you have the most recent version (set up auto updates if not already enabled!).

Open Chrome & the page you want to display

Just like you’re surfing the web. Now we’re going to dive in behind-the-scenes.

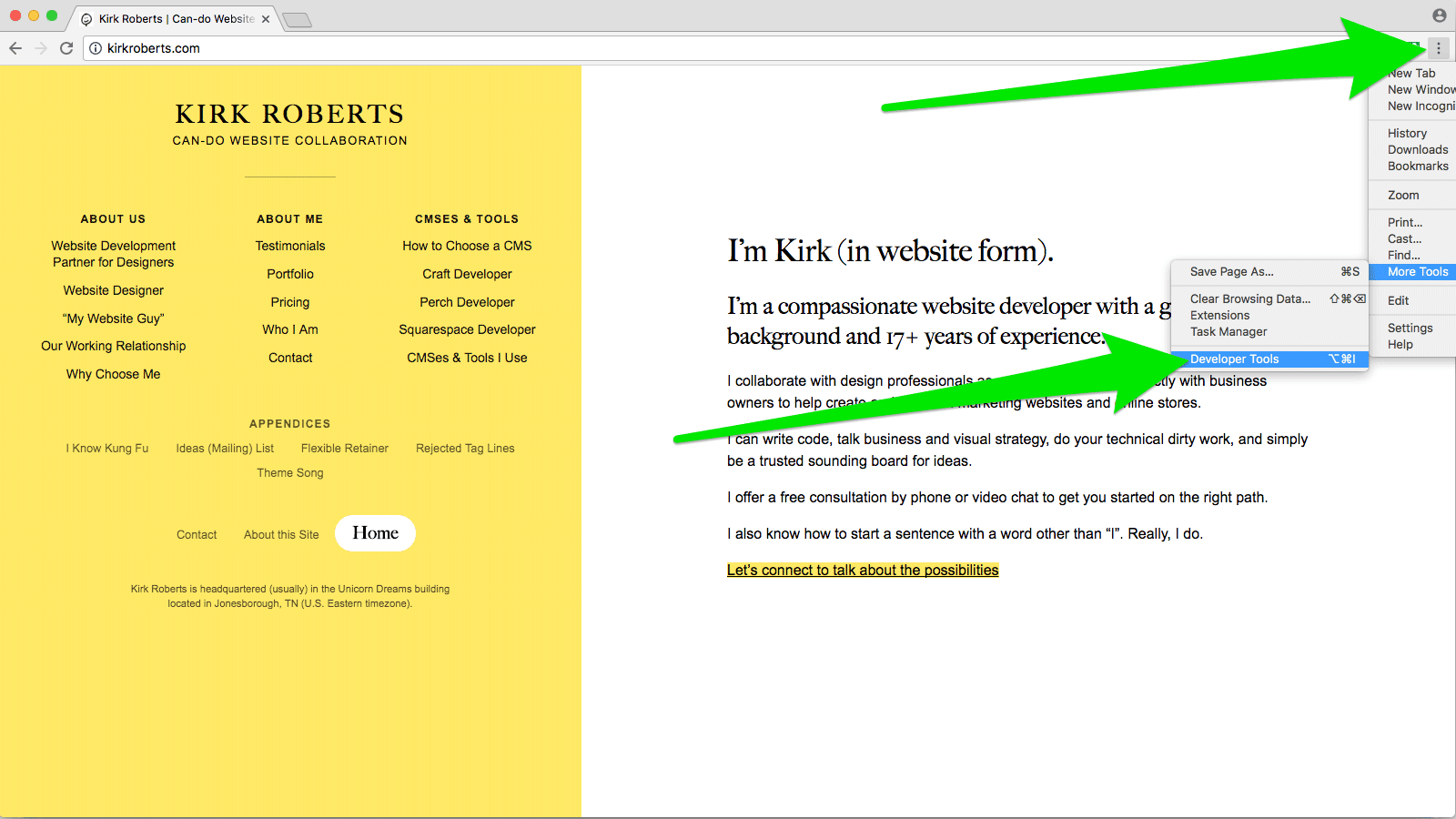

Enable Developer Tools

In Chrome, find the “three dots” menu at the top right of the browser window and choose More Tools > Developer Tools. Click that, opening the Developer Tools panel (may be a sidebar, at the bottom of the window, or a separate window entirely). Or, on a Mac press command-shift-I (capital I as in Ice Ice Baby) to open the panel.

Screenshots 0004 Layer 1

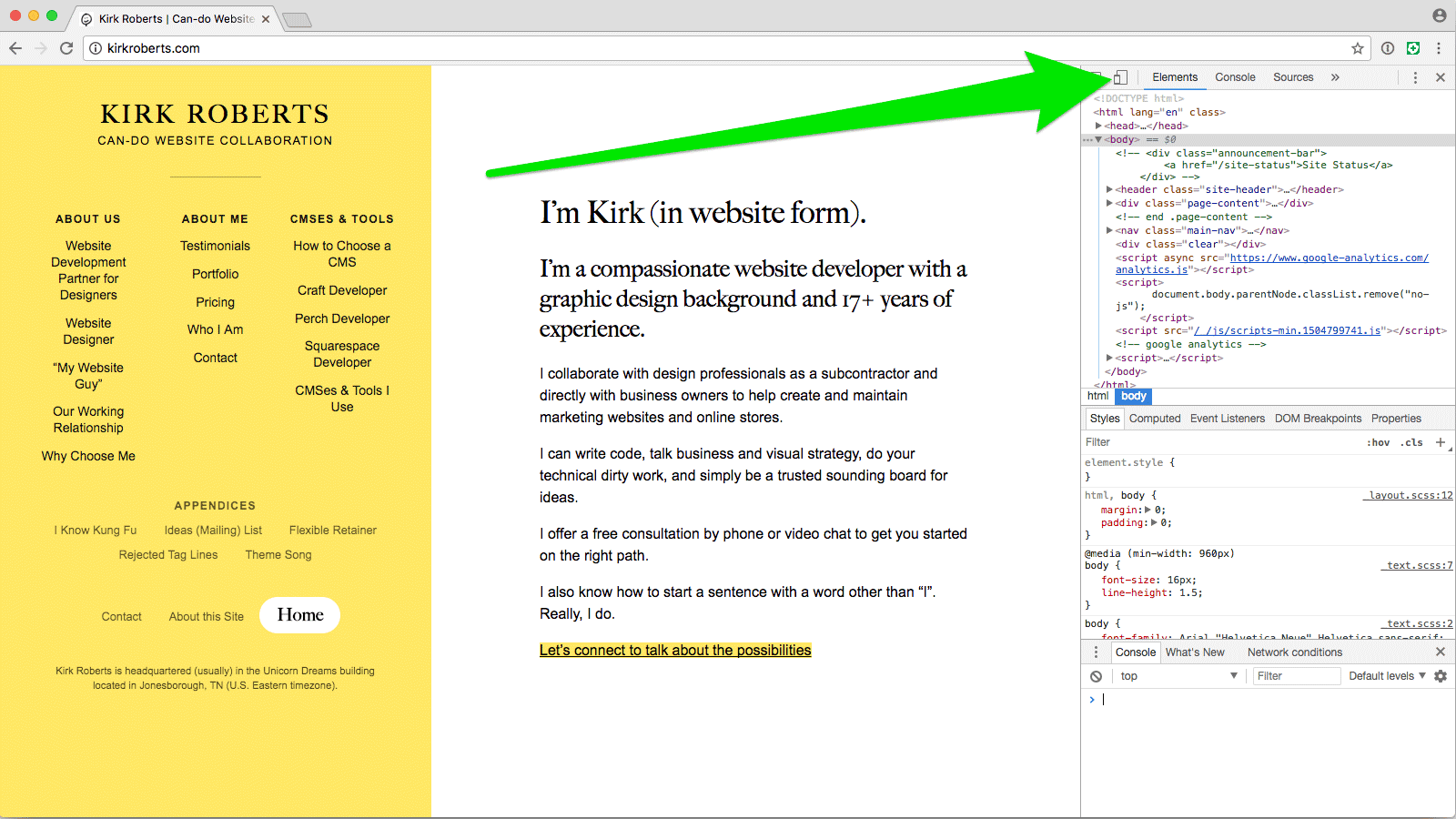

Go into Responsive mode

At the top of the Developer Tools panel find the icon that looks like a phone and a tablet. Click that, which constricts the viewport and adds the “device toolbar” above the current webpage. Or, on a Mac press command-shift-M to show the device toolbar.

Screenshots 0003 Layer 2

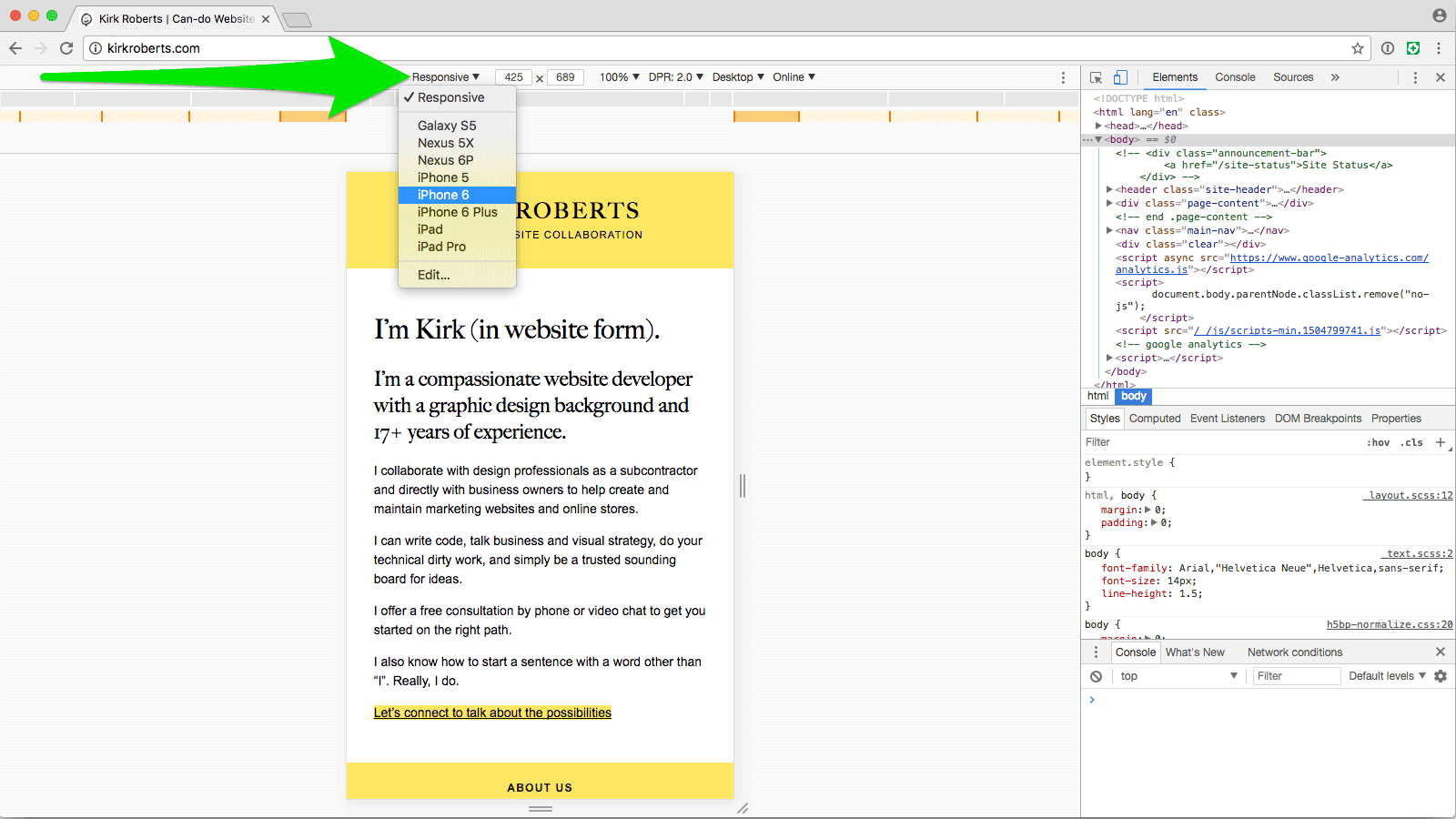

Choose the device you want

Find the “Responsive” menu at the top of the new interactive bar and choose the device you want to emulate.

Screenshots 0002 Layer 3

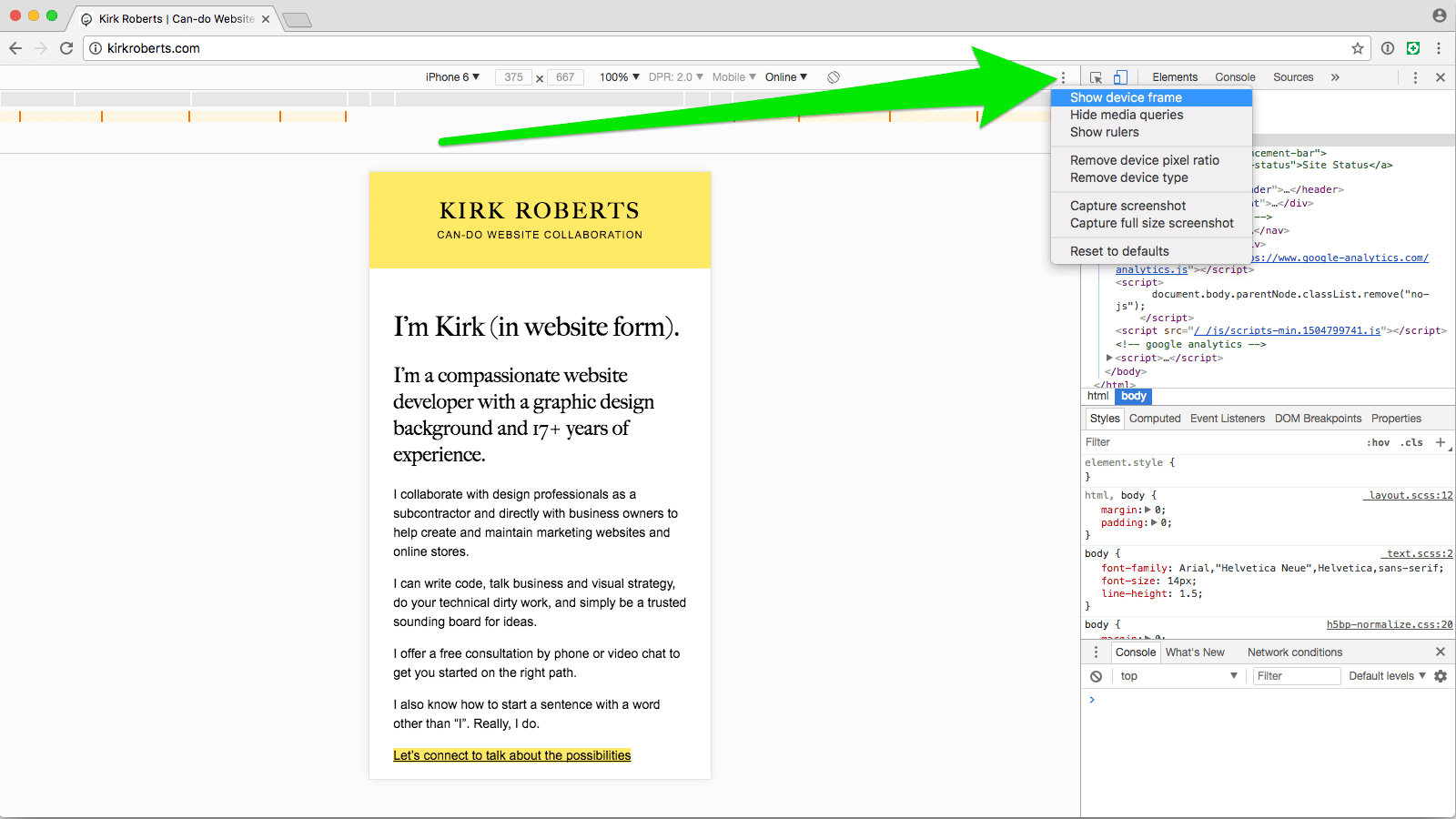

Choose to show device frame

If the resulting viewport doesn’t already have the device frame around it find the “three dots” menu at the top-right of the device toolbar and select “Show device frame”.

Screenshots 0001 Layer 4

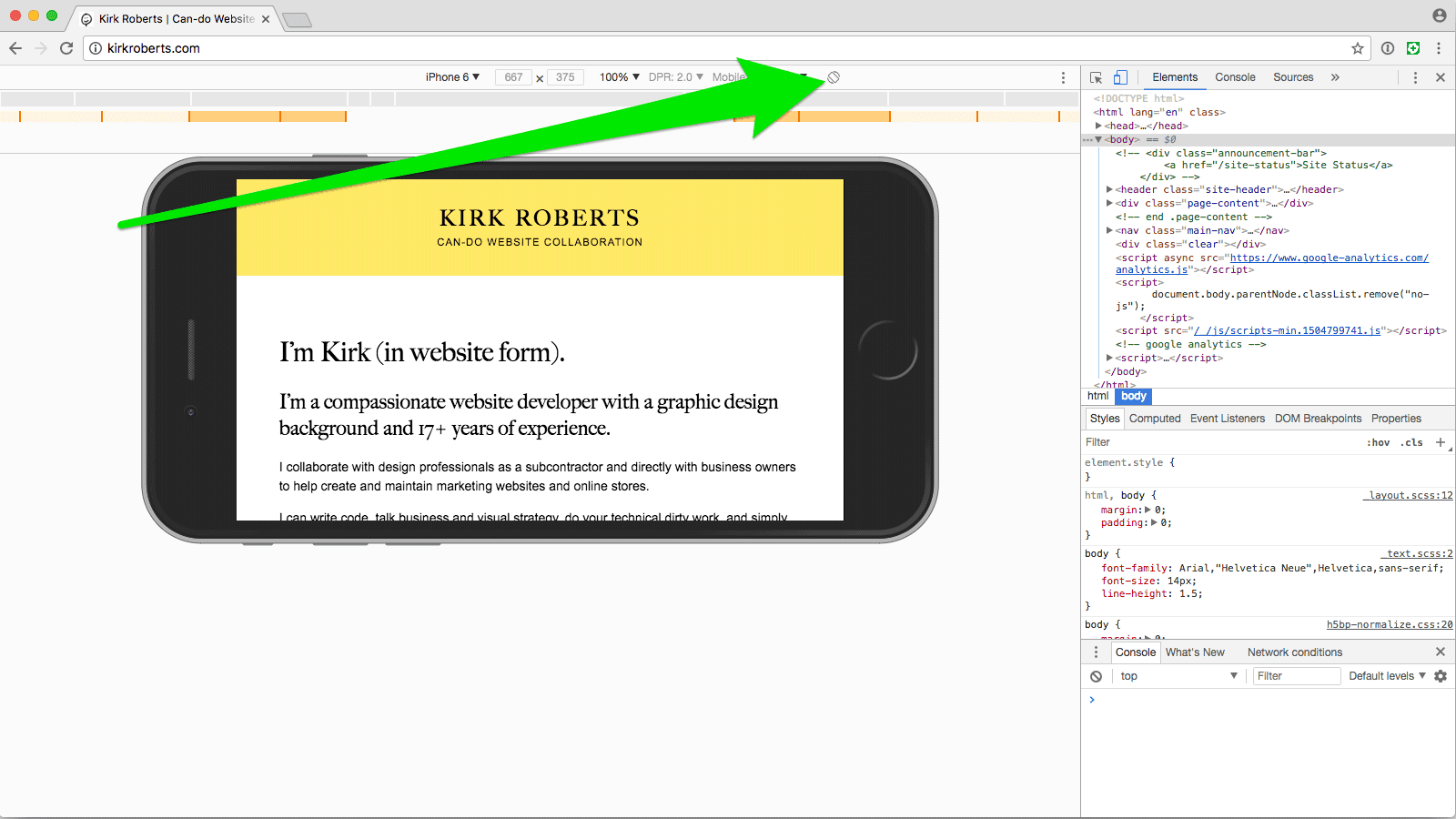

Rotate the device, if wanted

You can rotate the device by finding and clicking the rotate icon in the device toolbar.

Screenshots 0000 Layer 6

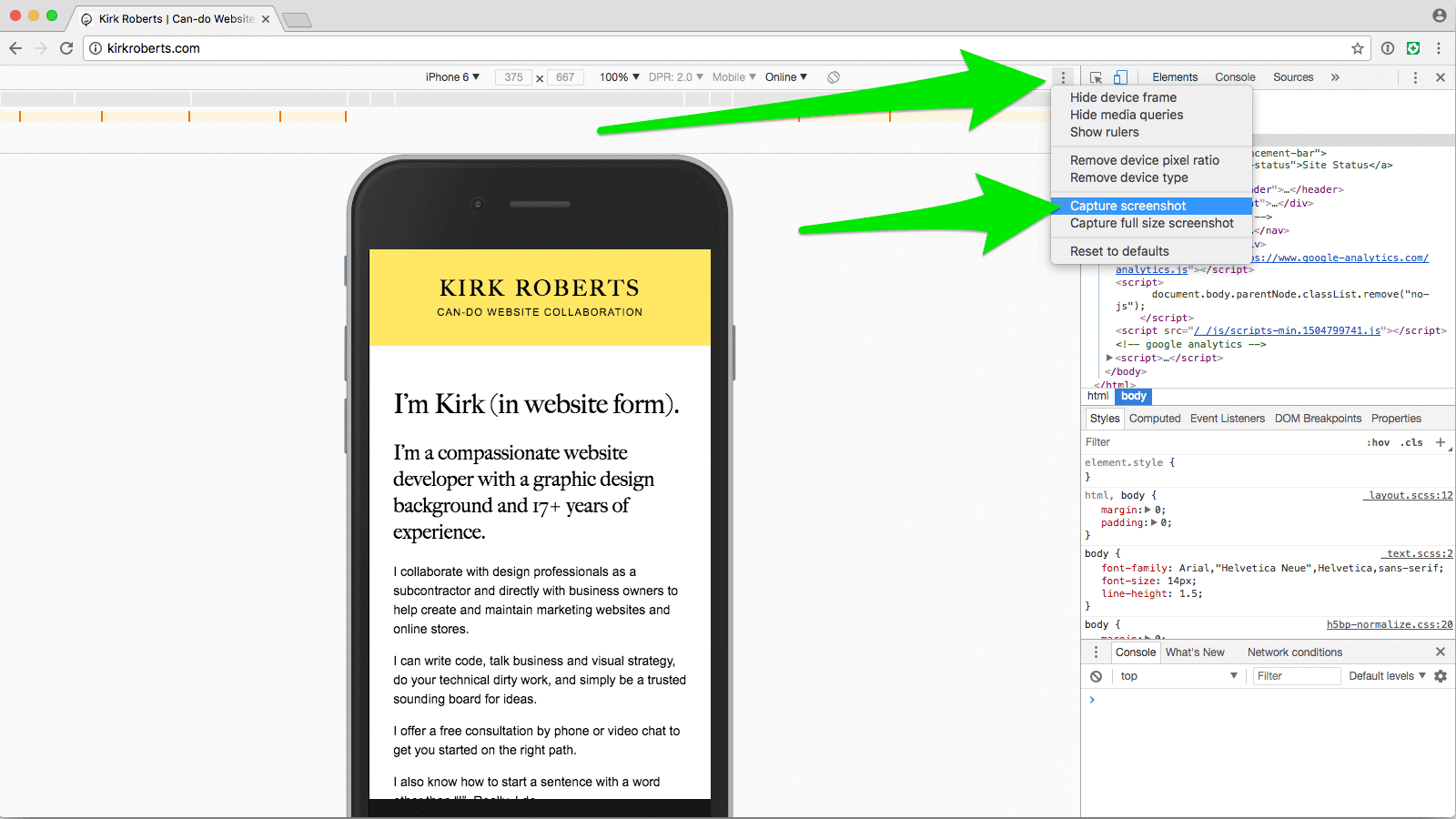

Choose Capture Screenshot

(It's okay if the device frame is cropped by your browser window. The resulting image will still be complete.) From the same “three dots” menu choose “Capture screenshot”. This will download a PNG image to your downloads folder (wherever that might be). You can also access the download from the toolbar that appears at the bottom of the Chrome window or on a Mac from Window > Downloads.

Now with just a few clicks you have a PNG image of the webpage inside of the device you selected, ready to place into your portfolio image layout PSD.

Screenshots 0000 Layer 5

Design comps in a device

If you want to show design comps rather than a live site, use this technique to get a device frame PNG and then mask in your website artwork.

Hope that is helpful!
